NON-MARKING SOLID CUSHION TYRE

NON-MARKING SOLID CUSHION TYRE

Description

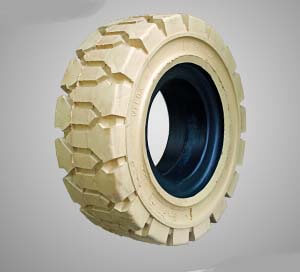

Non Marking Soild Cushion Tyres

Velox Non Marking Soild Cushion Tyres are manufactured based on the latest multi-layer tyre building technology in which the tyre’s integrated layers of varying hardness are made up of different formulations, incorporating the requisite special properties. This technology results in inter-layer complementing properties to yield a perfect and homogeneous tyre with long life and low heat build up.

Note:
LIP/CLICK TYPE TYRES: Lip/Click type tyres are supplied as per customer requirement.
Customized sizes and shapes can be made for bulk orders.

RANGE OF VELOX CUSHION TYRES-SIZE & DIMENSIONAL DETAILS
TYRE CODE TYRE SIZE RIM SIZE
TYRE DIMENSIONS
Max Width OD
Inches Inches
LOAD CAPACITY (Kg)
Load Wheels Steering Wheels
10 kmph 16 kmph
VC 164024 4.00X8 2.75 4.50 15.74 - 700
VC 164030 4.00X8 3.00 4.50 15.74 - 730
VC 164032 4.00X8 3.25 4.50 15.74 - 825
VC 154330 15X4-1/2-8 3.00 4.50 15.00 - 800
VC 185030 5.00X8 3.00D 4.92 17.68 - 877
VC 185032 5.00X8 3.25A 4.92 17.68 - 952
VC 166046 16X6-8 4.33R 6.00 16.00 1270 975
VC 205065 200X50-10 6.50 7.25 18.00 2470 1900
VC 187046 18X7x8 4.33R 6.25 18 2145 1650
VC 216040 6.00X9 4.00 6.14 20.25 1885 1390
VC 218060 21X8-9 6.00 7.57 21.25 2755 2032
VC 236350 6.50X10 5.00 6.80 22.80 2340 1800
VC 236353 6.50X10 5.50F 6.8 22.8 2340 1800
VC 239053 23X9-10 6.50 9.00 23.00 3160 2430
VC 235013 23X5-13 3.75 5.50 24.10 1495 1150
VC 267050 7.00X12 5.00 6.97 25.39 2920 2182
VC 266045 6.00-15 4.50 6.25 27.10 2455 1820
VC 288163 8.15×15 6.50 8.80 27.32 3445 2650
VC 288170 28X9-15 7 8.8 27.32 3445 2650
VC 281297 28×12.5×15 9.75 13.00 28.00 5034 4082
VC 297050 700X15 5.50 7.48 27.28 3545 2597
VC 297053 7.00X15 6.00 7.48 27.28 3545 2597
VC 297353 7.50X15 5.50 7.40 29.05 3686 2568
VC 297360 7.50X15 6.00 7.40 29.05 3686 2568
VC 297365 7.50X15 6.50 7.40 29.05 3686 2568
VC 297316 7.50×16 6.00 8.07 31.10 3908 2831
VC 292570 250X15 7.00 9.45 28.74 4362 3157
VC 328263 8.25×15 6.50/7 8.45 31.89 4750 3650
VC 321283 300X15 8.00 10.55 32.08 5735 4333

Applications

  • Fork Lifts
  • Ground Support Equipments
  • Platform Trucks, Port Trailers
  • Warehouse Equipments
  • Industrial Trailers
  • Baggage Trolleys
  • Pallet Trolleys
  • Reach Stackers
  • Air Craft Support Equipments

Features

  • Velox cushion tyres are made for diesel operated forklift with multi layers to meet the specific requirement of individual parts of the tyres.
  • Velox tyre’s tread patterns enable for easy steering, lesser rolling resistance and better traction. The tread compounds are made up of natural & synthetic rubbers to give better abrasion resistance during services.
  • The cushion layer in the tyre gives cushioning effect which results in riding comfort and also minimizes the whereabouts of forklift parts by isolating the vibrations.
  • The core portion of the tyre is made up of short fibre reinforcement with high tensile steal bead wires which enables better grip with rim.

Three Layers
